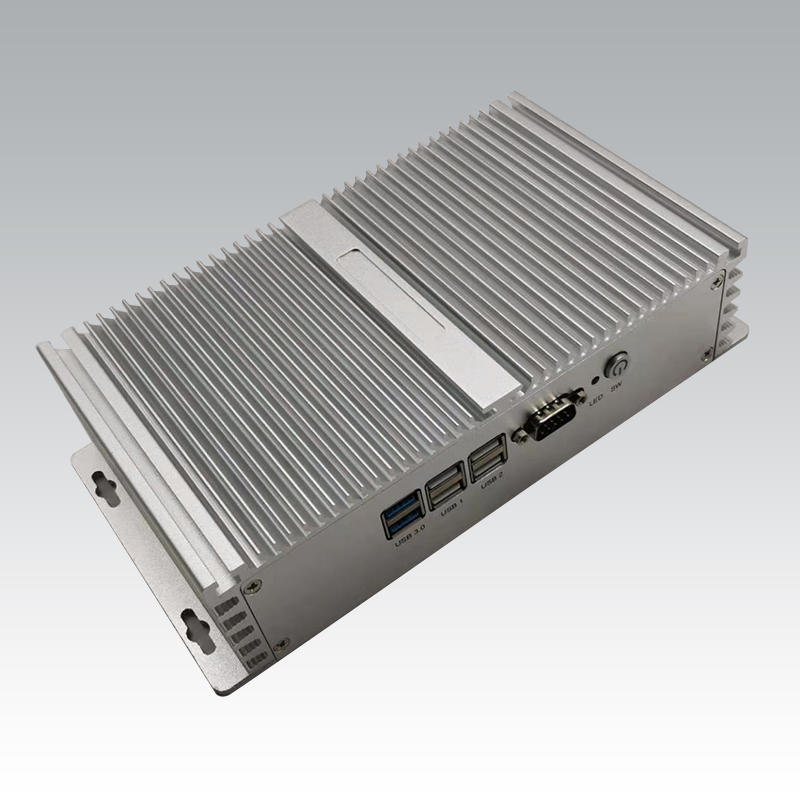

| Name | BOX-IPC |
| Model | EARK-1376N6A |
| Chipset | Intel Skylake/Skylake-U |
| CPU | Intel Celeron J1800/1900 |
| Memory | 1*204pin DDR3,1.35v max8G |
| storage | mSATA ,SATA HDD |
| Expansion slots | 1*mSATA,1*minipci-e |
| I/O ports | 2*LAN |
| 4*USB2.0/2*USB3.0 |
| 1*VGA/1*HDMI |
| 2*lIine Out/MIC-IN |
| 1*DCIN12V |
|
|
|
|
| Optional Modules |
|
| OEM IO Function |
|
| OS Support | Windows 7 32/64bit (6 CPU) |
| Windows 8.1 32/64bit（6 CPU） |
| Windows 10 64 bit（6、7 CPU） |
| LINUX （6、7 CPU） |
| Mechanical |
|
| Dimensions |
|
| Weight | 1.39KG |
| Mounting |
|
| Power |
|
| DC input | 12V |
|
|
| AC input |
|
| Environment | OPERATING：0~ +60℃ |
| STORAGE TEMP：-40℃~ +85℃ |
