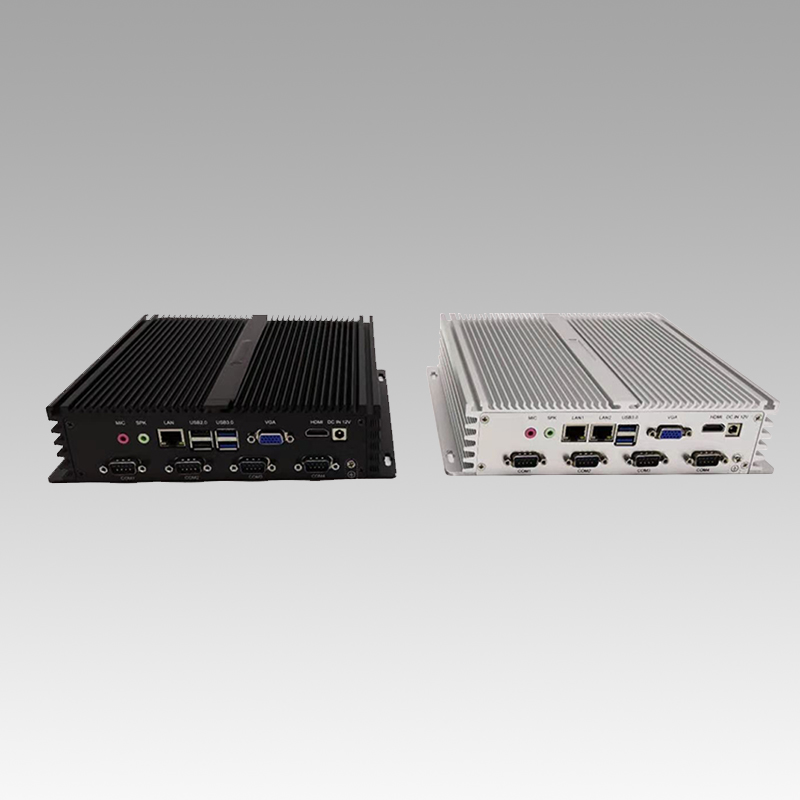

| Name | BOX-IPC |
| Model | EARK-1375N5-I5A(A款为黑色单网） |
| Chipset | Intel Haswell-U Core i3/i5/i7 |
| CPU | Intel i5-4250U 1.3GHz |
| Memory | 2*SO-DIMM,DDR3L 1333/1600MHz,max 32GB |
| storage | mSATA ,SATA HDD |
| Expansion slots | 1*mSATA,1*minipci-e |
| I/O ports | 1*LAN(or2*lan) |
| 2*USB3.0/2*USB2.0 |
| 1*VGA/1*HDMI/1*LVDS |
| 2*lIine Out/MIC-IN |
| 1*DCIN12V |
| 6*RS232(COM1-232/422/485) |
| GPIO*4IN/OUT |
| Optional Modules |
|
| OEM IO Function |
|
| OS Support | Windows 7 32/64bit |
| Windows 8.1 32/64bit |
| Windows 10 64 bit |
| LINUX |
| Mechanical |
|
| Dimensions |
|
| Weight | 1.4KG |
| Mounting |
|
| Power |
|
| DC input | 12V |
|
|
| AC input |
|
| Environment | OPERATING：0~ +60℃ |
| STORAGE TEMP：-40℃~ +85℃ |
